NVMFS6H818NLWFT1G
onsemi
onsemi
MOSFET N-CH 80V 22A/135A 5DFN
$2.50
Available to order
Reference Price (USD)
1+
$2.50265
500+
$2.4776235
1000+
$2.452597
1500+
$2.4275705
2000+
$2.402544
2500+
$2.3775175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the NVMFS6H818NLWFT1G single MOSFET from onsemi. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust onsemi's NVMFS6H818NLWFT1G for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 135A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.2mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2V @ 190µA
- Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3844 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 140W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 5-DFN (5x6) (8-SOFL)
- Package / Case: 8-PowerTDFN, 5 Leads
Related Products
Renesas Electronics America Inc
2SK1629-E
Microchip Technology
TN0104N3-G
PN Junction Semiconductor
P3M12040K4
Vishay Siliconix
SIHW30N60E-GE3
STMicroelectronics
STF3N80K5
IXYS
IXTH24P20
Texas Instruments
CSD19534KCS
onsemi

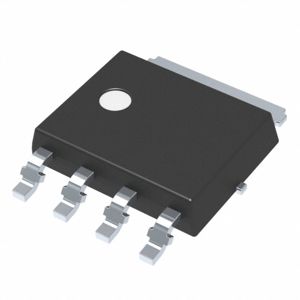

NTMYS014N06CLTWG
Microchip Technology

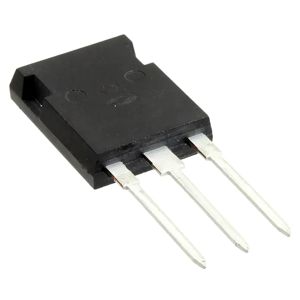

APT1201R2BFLLG

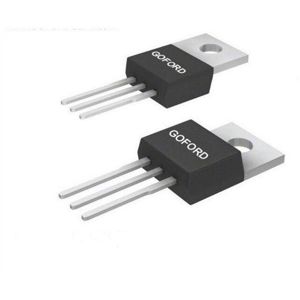

Goford Semiconductor
