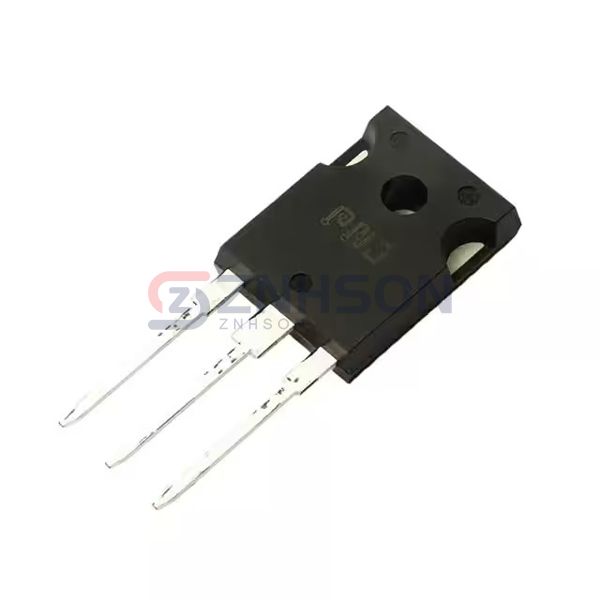

P3M12080K3
PN Junction Semiconductor
PN Junction Semiconductor
SICFET N-CH 1200V 47A TO-247-3
$11.90
Available to order
Reference Price (USD)
1+
$11.90000
500+
$11.781
1000+
$11.662
1500+
$11.543
2000+
$11.424
2500+
$11.305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the P3M12080K3 from PN Junction Semiconductor, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the P3M12080K3 ensures reliable performance in demanding environments. Upgrade your circuit designs with PN Junction Semiconductor's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 47A
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 96mOhm @ 20A, 15V
- Vgs(th) (Max) @ Id: 2.4V @ 5mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): +21V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: -
- FET Feature: -
- Power Dissipation (Max): 221W
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3L
- Package / Case: TO-247-3
