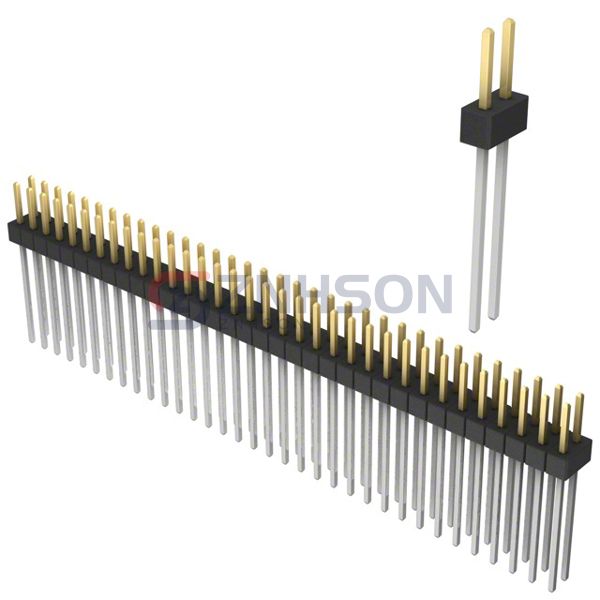

PBC34DAFN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 68POS 2.54MM
$8.58
Available to order
Reference Price (USD)
1+
$8.58000
10+
$8.20300
25+
$7.45720
50+
$7.08440
100+
$6.89800
250+
$6.15232
500+
$5.77944
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PBC34DAFN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PBC34DAFN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 68
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.620" (15.75mm)
- Overall Contact Length: 0.950" (24.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-1775099-3
TE Connectivity AMP Connectors
1-1744429-0
TE Connectivity AMP Connectors
1744489-8
HARTING
09185265323
Amphenol ICC (FCI)
77313-427-40LF

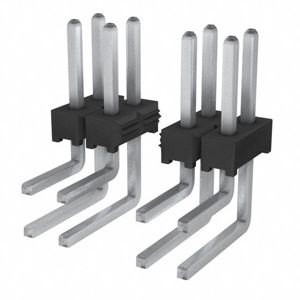

Samtec Inc.
TMM-112-01-T-D-RA

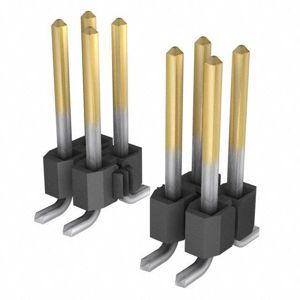

Samtec Inc.
TSM-110-02-F-DV-P

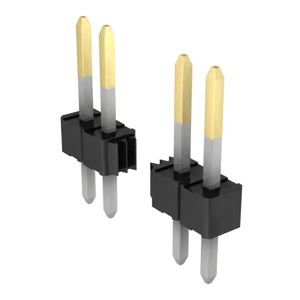

Molex
