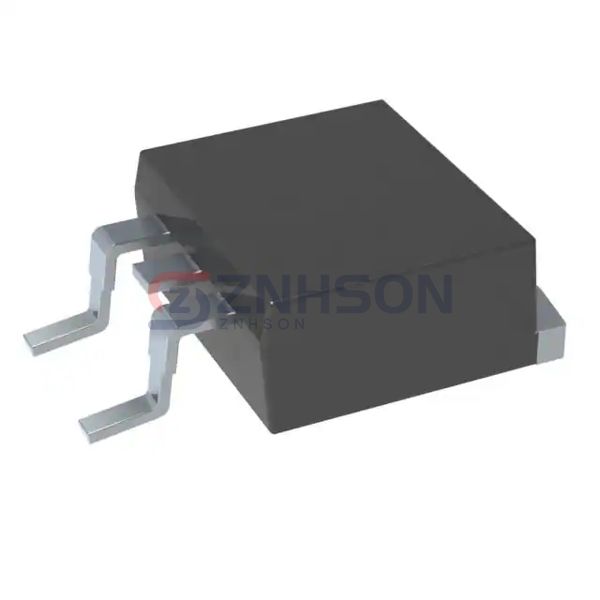

PCDB20120G1_T0_00001
Panjit International Inc.
Panjit International Inc.
1200V SIC SCHOTTKY BARRIER DIODE
$13.68
Available to order
Reference Price (USD)
1+
$13.68000
500+
$13.5432
1000+
$13.4064
1500+
$13.2696
2000+
$13.1328
2500+
$12.996
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PCDB20120G1_T0_00001 from Panjit International Inc. is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panjit International Inc.'s PCDB20120G1_T0_00001 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io): 20A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 20 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 180 µA @ 1200 V
- Capacitance @ Vr, F: 1040pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
- Operating Temperature - Junction: -55°C ~ 175°C
Related Products
Taiwan Semiconductor Corporation
MUR160SH
Vishay General Semiconductor - Diodes Division
1N6478HE3/96
Vishay General Semiconductor - Diodes Division
VS-15ETH03STRR-M3
Rohm Semiconductor

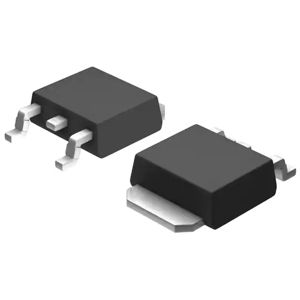

RFV8BM6STL
Vishay General Semiconductor - Diodes Division

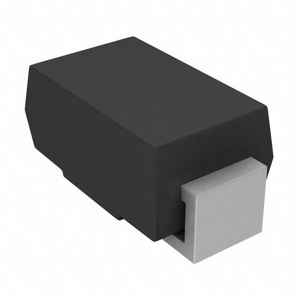

US1BHE3_A/I
Micro Commercial Co

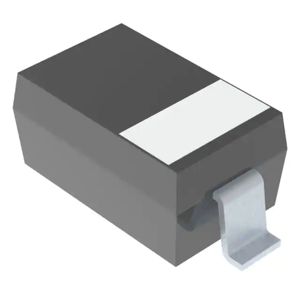

SD101AW-TP
GeneSiC Semiconductor
MBR3540
Nexperia USA Inc.
PMEG6010AESBYL
Panjit International Inc.

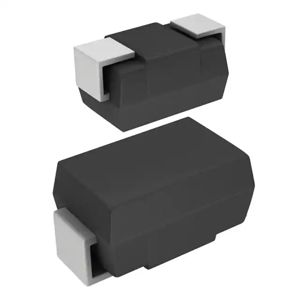

SS19L_R1_00001
