PDTC114EQB-QZ
Nexperia USA Inc.
Nexperia USA Inc.

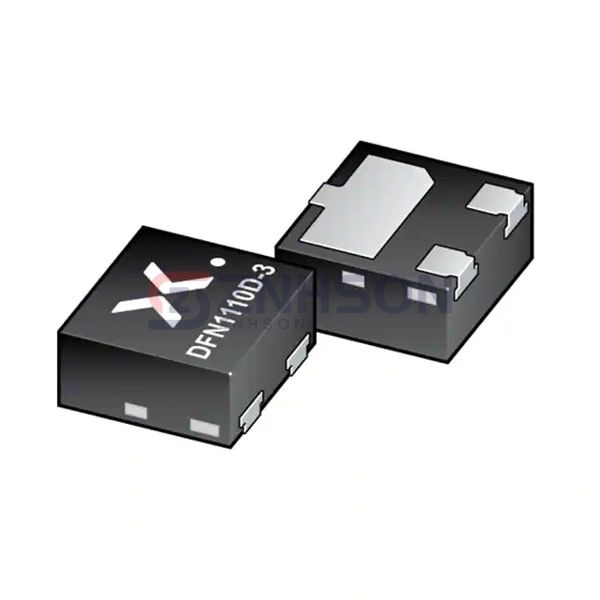

PDTC114EQB-Q/SOT8015/DFN1110D-
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PDTC114EQB-QZ from Nexperia USA Inc. is a high-performance Bipolar Junction Transistor (BJT) designed for precision applications. This pre-biased transistor simplifies circuit design by integrating resistors, reducing component count and board space. Ideal for switching and amplification, it offers excellent thermal stability and low saturation voltage. Common applications include LED drivers, relay switches, and audio amplifiers. Trust Nexperia USA Inc.'s expertise in discrete semiconductors for reliable performance in industrial and consumer electronics.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 230 MHz
- Power - Max: 340 mW
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1110D-3
