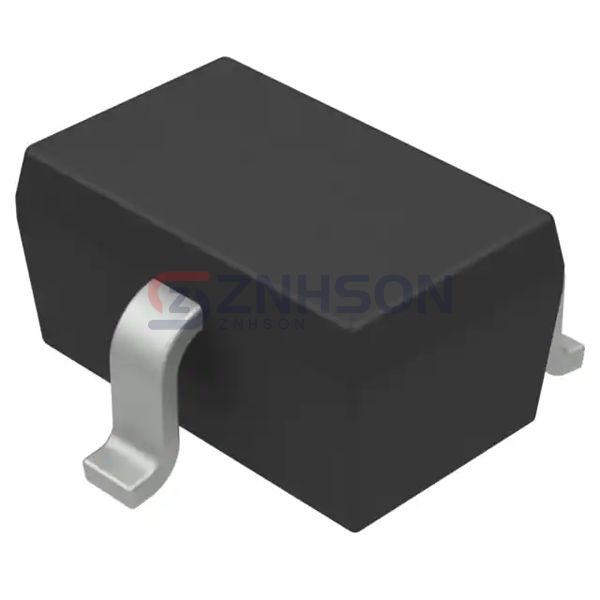

PDTD143EUF
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS NPN 0.425W
$0.05
Available to order
Reference Price (USD)
10,000+
$0.04420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nexperia USA Inc.'s PDTD143EUF redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 225 MHz
- Power - Max: 300 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
