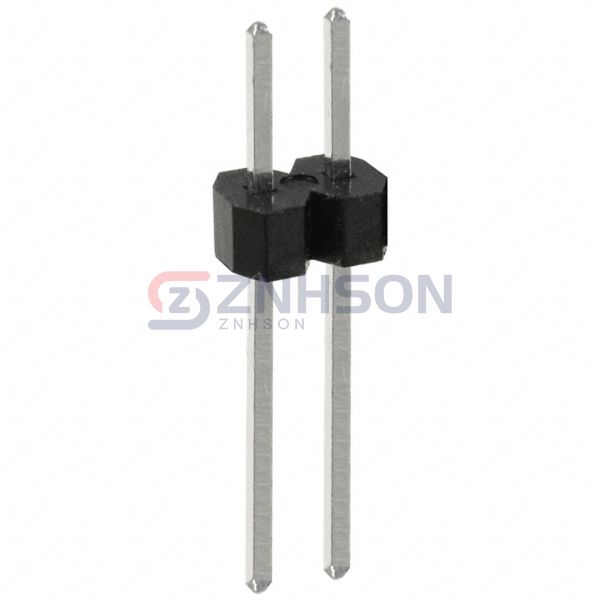

PEC02SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 2POS 2.54MM
$0.27
Available to order
Reference Price (USD)
1+
$0.27000
10+
$0.25800
25+
$0.21960
50+
$0.19220
100+
$0.17850
250+
$0.15796
500+
$0.15108
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PEC02SADN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PEC02SADN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
ZSS-105-03-L-D-665
TE Connectivity AMP Connectors
2336491-4
TE Connectivity AMP Connectors
179844-1
SUPERIOR TECH
PHDD-RS008G1ABOPA-C072
Amphenol ICC (FCI)
77311-127-07LF
Samtec Inc.
FTSH-105-01-L-DV-007-K-A-P-TR
Molex
1054302405

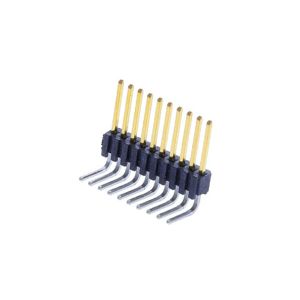

Samtec Inc.
TMS-110-01-S-S-RA

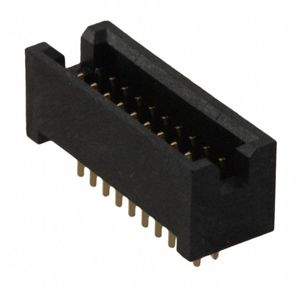

Harwin Inc.
