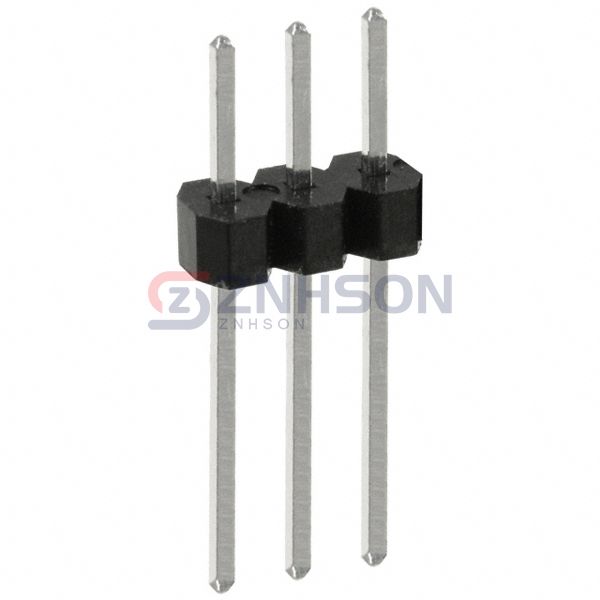

PEC03SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 3POS 2.54MM
$0.38
Available to order
Reference Price (USD)
1+
$0.38000
10+
$0.36100
25+
$0.30920
50+
$0.26260
100+
$0.25240
250+
$0.22660
500+
$0.21630
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC03SADN from Sullins Connector Solutions is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PEC03SADN offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Sullins Connector Solutions for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1MM-HU-D26-VS-00-H-TBP
JST Sales America Inc.
B05B-XASK-1N(LF)(SN)
Amphenol ICC (FCI)
98424-G52-08ALF
Samtec Inc.

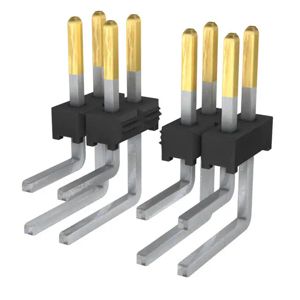

TMM-108-01-T-D-RA
TE Connectivity AMP Connectors

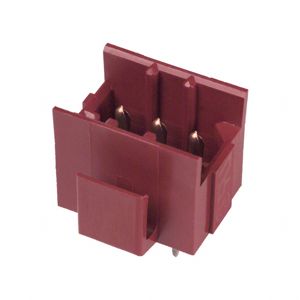

2-640500-2
Sullins Connector Solutions

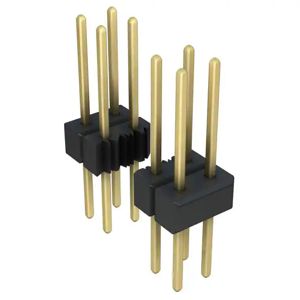

PBC17DFBN
Samtec Inc.

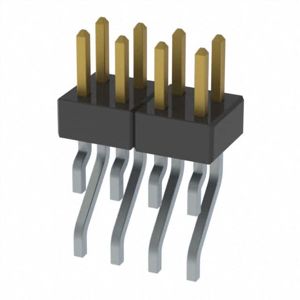

MMT-104-01-S-DH-K
Preci-Dip

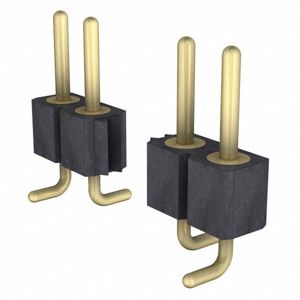

800-10-014-30-001101
Mill-Max Manufacturing Corp.

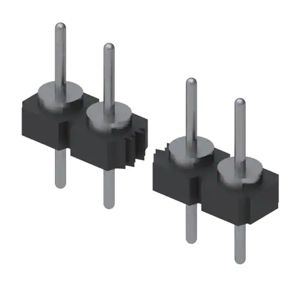

335-90-130-00-160000
