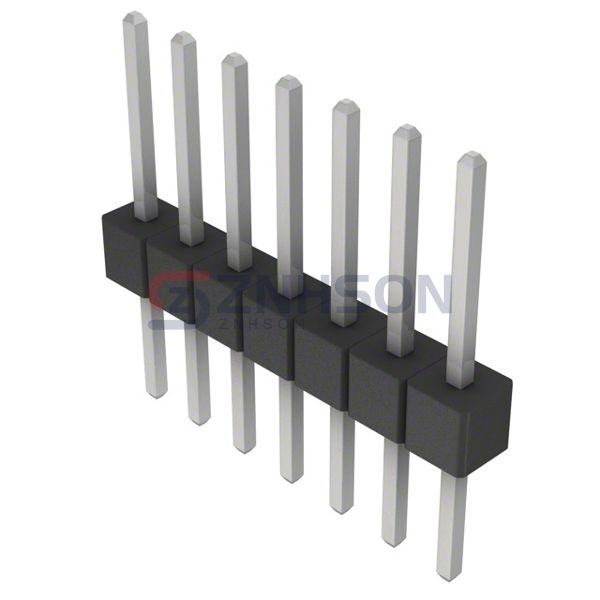

PEC07SFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 7POS 2.54MM
$0.78
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.72800
25+
$0.65520
50+
$0.58240
100+
$0.55810
250+
$0.50960
500+
$0.48534
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC07SFBN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC07SFBN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-126-02-S-DV-A-P
Samtec Inc.
FTS-105-01-FM-DV-P-TR
Molex
0026486124
Samtec Inc.
TSM-108-01-S-DV-P-TR
JAE Electronics
MX34007UF1
Samtec Inc.
HTSW-130-08-F-D-RA
Molex
1724470002
JST Sales America Inc.
S14B-PH-SM4-TB(LF)(SN)
Molex

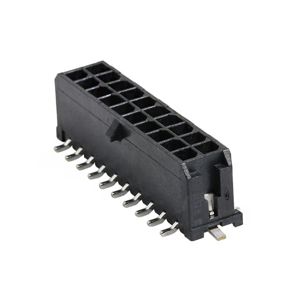

0430452020
