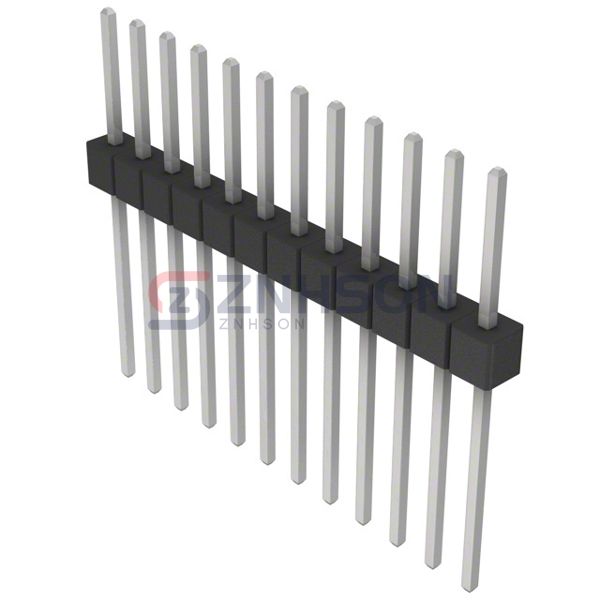

PEC12SFEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 12POS 2.54MM
$1.75
Available to order
Reference Price (USD)
1+
$1.75000
10+
$1.58800
25+
$1.49040
50+
$1.42560
100+
$1.36080
250+
$1.23120
500+
$1.13400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PEC12SFEN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PEC12SFEN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.938" (23.83mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
