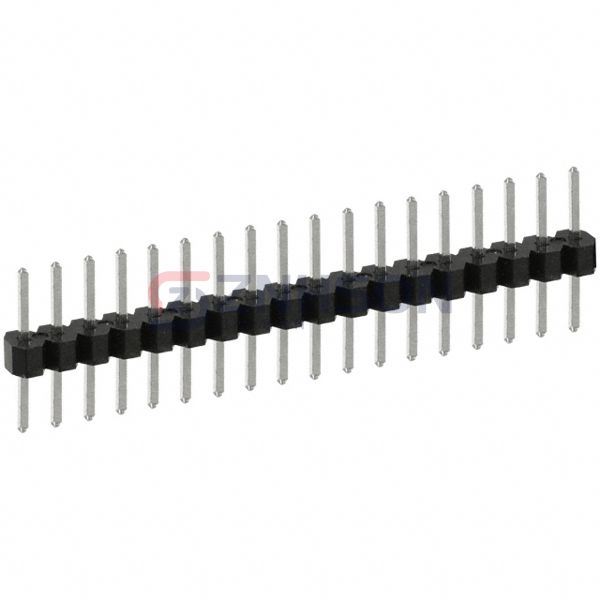

PEC18SABN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 18POS 2.54MM
$1.46
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32300
25+
$1.24200
50+
$1.18800
100+
$1.13400
250+
$1.02600
500+
$0.94500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC18SABN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC18SABN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF20F-30DP-1H(52)
Amphenol ICC (FCI)
77319-804-06LF
Samtec Inc.
TSM-119-01-F-DH-A
Samtec Inc.
TSM-107-01-S-DV-012
Samtec Inc.
TMM-116-02-S-D
TE Connectivity AMP Connectors
102202-6
Samtec Inc.
TMM-104-05-T-S

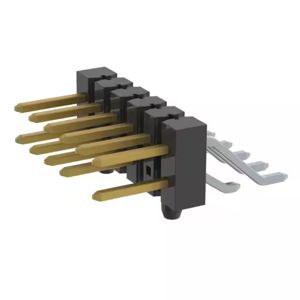

Samtec Inc.
