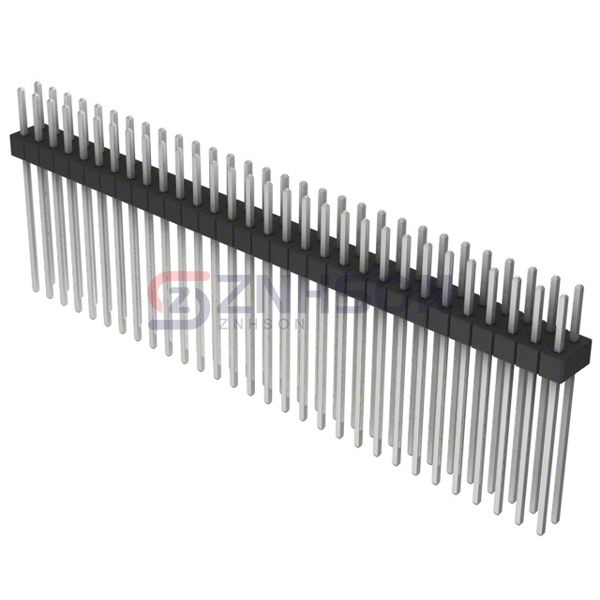

PEC30DAGN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 60POS 2.54MM
$7.27
Available to order
Reference Price (USD)
1+
$7.27000
10+
$6.96900
25+
$6.36320
50+
$6.06000
100+
$5.75700
250+
$5.15100
500+
$4.84800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC30DAGN male pin header by Sullins Connector Solutions offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Sullins Connector Solutions for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.720" (18.29mm)
- Overall Contact Length: 1.050" (26.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
