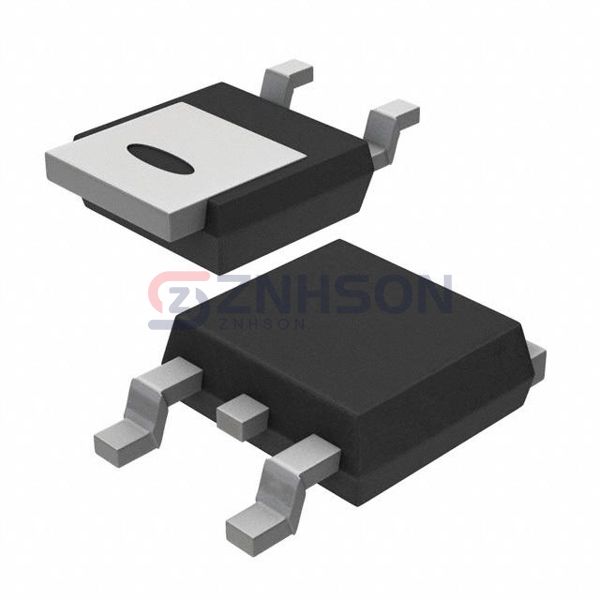

PHD101NQ03LT,118
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 30V 75A DPAK
$0.29
Available to order
Reference Price (USD)
10,000+
$0.36270
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the PHD101NQ03LT,118 by Nexperia USA Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the PHD101NQ03LT,118 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 5.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2180 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 166W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
