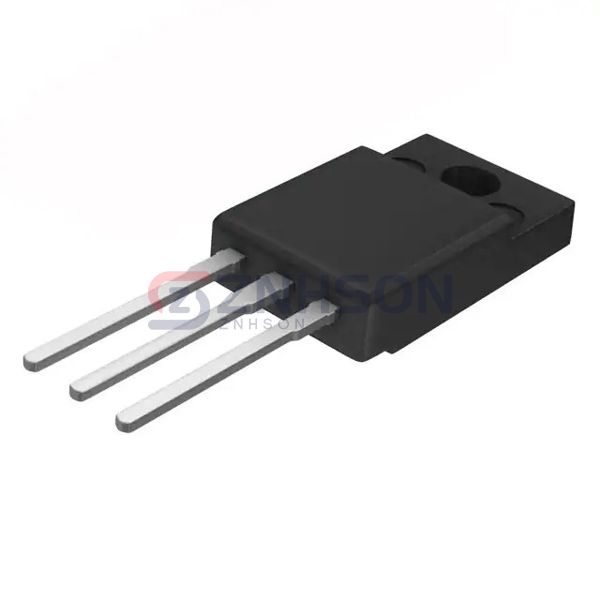

PJF60R290E_T0_00001
Panjit International Inc.
Panjit International Inc.
600V N-CHANNEL SUPER JUNCTION MO
$2.54
Available to order
Reference Price (USD)
1+
$2.54000
500+
$2.5146
1000+
$2.4892
1500+
$2.4638
2000+
$2.4384
2500+
$2.413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PJF60R290E_T0_00001 from Panjit International Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the PJF60R290E_T0_00001 ensures reliable performance in demanding environments. Upgrade your circuit designs with Panjit International Inc.'s cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta), 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 290mOhm @ 6.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1013 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: ITO-220AB
- Package / Case: TO-220-3 Full Pack
