PJMD900N60EC_L2_00001

Panjit International Inc.

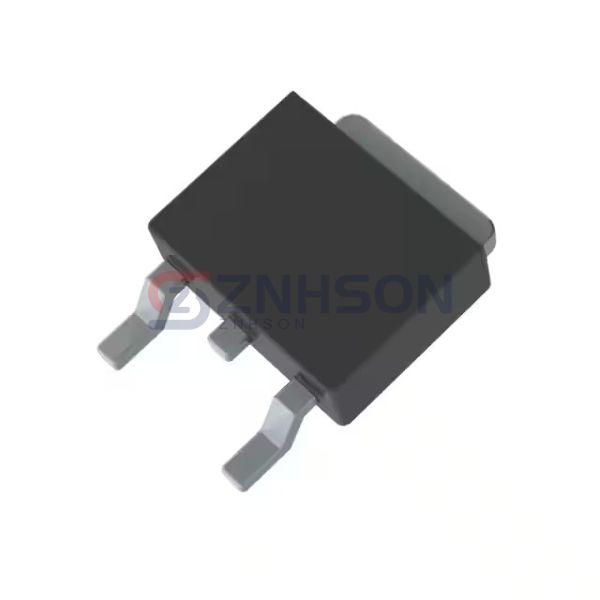

PJMD900N60EC_L2_00001 Preview
Panjit International Inc.
600V SUPER JUNCITON MOSFET
$2.19
Available to order
Reference Price (USD)
1+
$2.19000
500+
$2.1681
1000+
$2.1462
1500+
$2.1243
2000+
$2.1024
2500+
$2.0805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600 V
  • Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 900mOhm @ 2.3A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 8.8 nC @ 10 V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 310 pF @ 400 V
  • FET Feature: -
  • Power Dissipation (Max): 47.5W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TO-252AA
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
