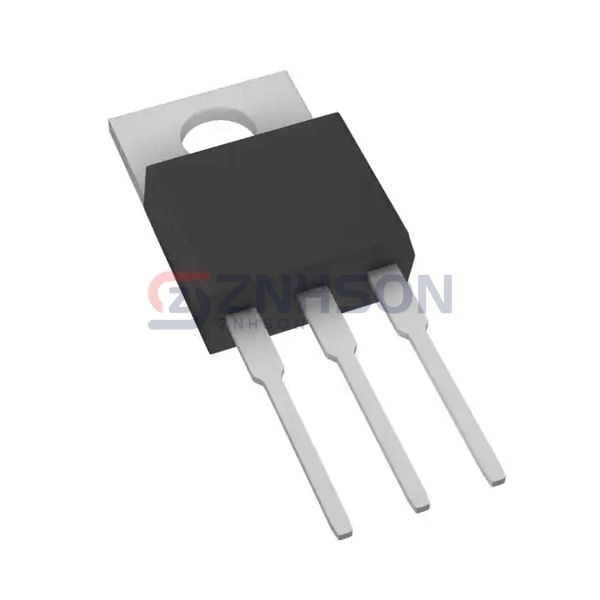

PJP2NA1K_T0_00001
Panjit International Inc.
Panjit International Inc.
1000V N-CHANNEL MOSFET
$1.08
Available to order
Reference Price (USD)
1+
$1.08000
500+
$1.0692
1000+
$1.0584
1500+
$1.0476
2000+
$1.0368
2500+
$1.026
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJP2NA1K_T0_00001 by Panjit International Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PJP2NA1K_T0_00001 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 9Ohm @ 1A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 385 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 80W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
