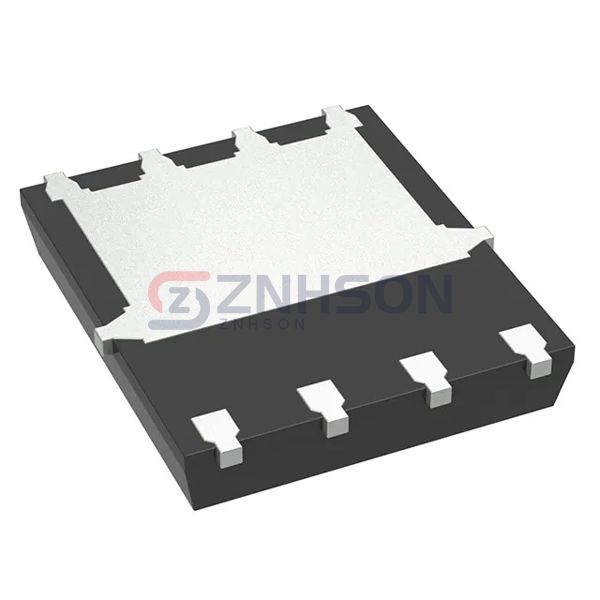

PJQ5423_R2_00001
Panjit International Inc.
Panjit International Inc.
30V P-CHANNEL ENHANCEMENT MODE M
$0.76
Available to order
Reference Price (USD)
1+
$0.76000
500+
$0.7524
1000+
$0.7448
1500+
$0.7372
2000+
$0.7296
2500+
$0.722
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJQ5423_R2_00001 from Panjit International Inc. sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Panjit International Inc.'s PJQ5423_R2_00001 for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 11A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3228 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 63W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
