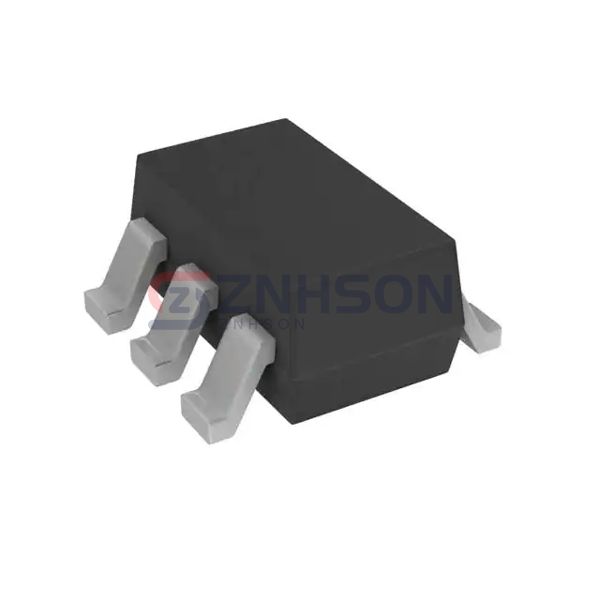

PJS6601-AU_S1_000A1
Panjit International Inc.
Panjit International Inc.
20V COMPLEMENTARY ENHANCEMENT MO
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PJS6601-AU_S1_000A1 by Panjit International Inc., a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the PJS6601-AU_S1_000A1 ensures energy efficiency and robust performance. Panjit International Inc.'s commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: N and P-Channel Complementary
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 4.1A (Ta), 3.1A (Ta)
- Rds On (Max) @ Id, Vgs: 56mOhm @ 4.1A. 4.5V, 115mOhm @ 3.1A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.6nC @ 4.5V, 5.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 350pF @ 10V, 416pF @ 10V
- Power - Max: 1.25W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
