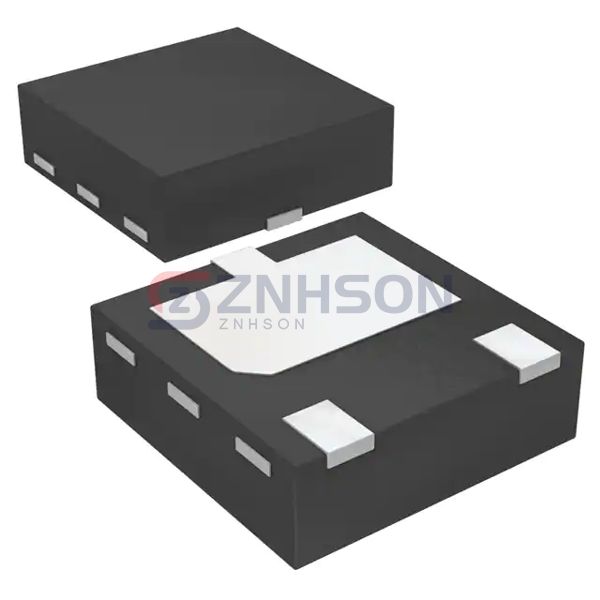

PMEG3020CPASX
Nexperia USA Inc.
Nexperia USA Inc.
DIODE SCHOTTKY 30V 2A SOT1061
$0.19
Available to order
Reference Price (USD)
3,000+
$0.16362
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMEG3020CPASX from Nexperia USA Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Nexperia USA Inc.'s PMEG3020CPASX for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 2A
- Voltage - Forward (Vf) (Max) @ If: 440 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 2 mA @ 30 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 3-UDFN Exposed Pad
- Supplier Device Package: DFN2020D-3
