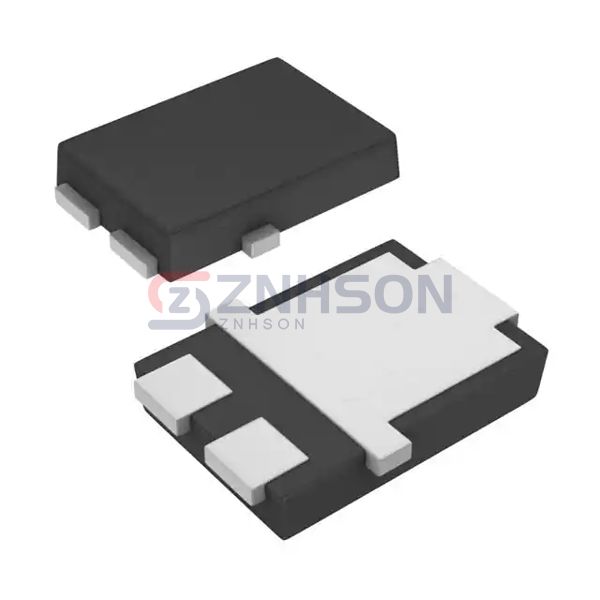

VS-6CSH01-M3/86A
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE HFAST REC 100V 3A TO277A
$0.68
Available to order
Reference Price (USD)
1,500+
$0.29957
3,000+
$0.27502
7,500+
$0.26683
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-6CSH01-M3/86A rectifier array from Vishay General Semiconductor - Diodes Division redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Vishay General Semiconductor - Diodes Division's precision manufacturing ensures each VS-6CSH01-M3/86A meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 3A
- Voltage - Forward (Vf) (Max) @ If: 940 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 20 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 100 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277A (SMPC)
Related Products
SMC Diode Solutions
301CMQ040
Rohm Semiconductor
RBR30NS30AFHTL
STMicroelectronics
STTH20004TV1
Panjit International Inc.
SBA0530SA_R1_00001
Infineon Technologies
IDW10G120C5BFKSA1
Vishay General Semiconductor - Diodes Division
VB30200C-E3/4W
SMC Diode Solutions
160CMQ035

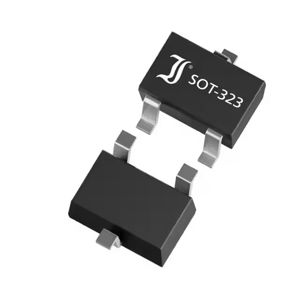

Diotec Semiconductor
BAS70-04W

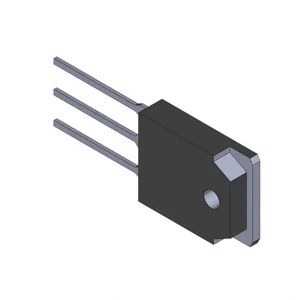

Fairchild Semiconductor
