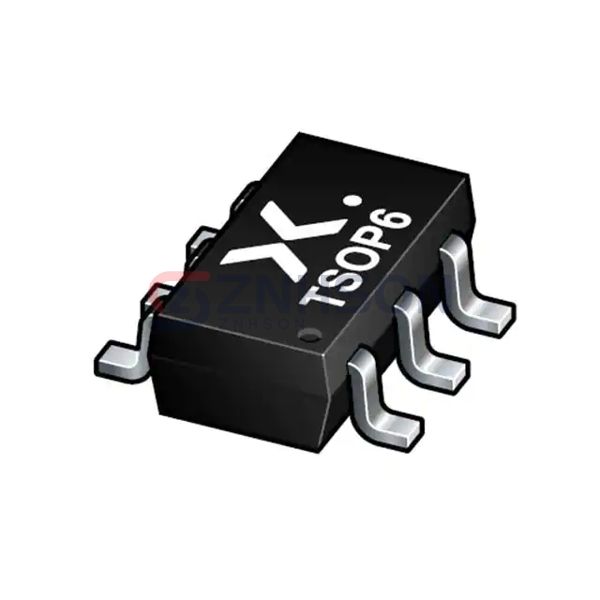

PMN48XPA2X
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET P-CH 20V 4.4A 6TSOP
$0.48
Available to order
Reference Price (USD)
1+
$0.48000
500+
$0.4752
1000+
$0.4704
1500+
$0.4656
2000+
$0.4608
2500+
$0.456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMN48XPA2X from Nexperia USA Inc. sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Nexperia USA Inc.'s PMN48XPA2X for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 8V
- Rds On (Max) @ Id, Vgs: 49mOhm @ 4.4A, 8V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 679 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 660mW (Ta), 7.5W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP
- Package / Case: SC-74, SOT-457
