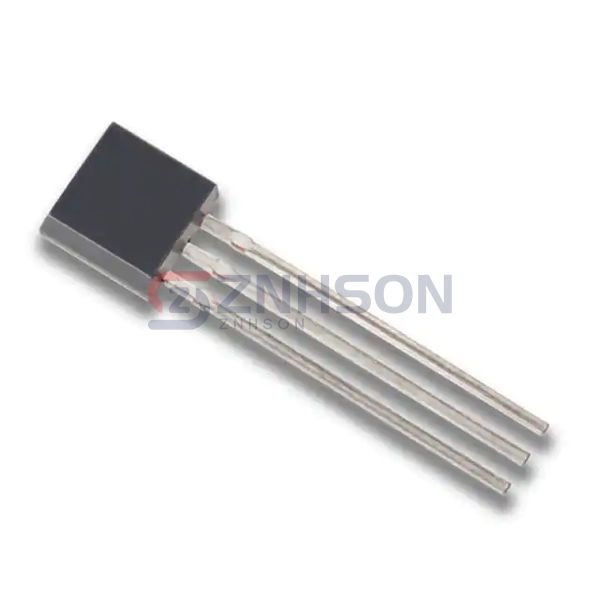

PN4119 TO-92 3L
Linear Integrated Systems, Inc.
Linear Integrated Systems, Inc.
ULTRA HIGH INPUT IMPEDANCE N-CHA
$2.69
Available to order
Reference Price (USD)
1+
$2.69000
500+
$2.6631
1000+
$2.6362
1500+
$2.6093
2000+
$2.5824
2500+
$2.5555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Linear Integrated Systems, Inc.'s PN4119 TO-92 3L redefines expectations for JFETs in the Discrete Semiconductor Products category. This dual-gate version offers unique flexibility for multiplier and mixer applications with exceptional isolation between gates. Key technical highlights include precisely matched channels, low feedback capacitance, and symmetrical transfer characteristics. The PN4119 TO-92 3L dominates in spectrum analyzers, vector network analyzers, and advanced communication test equipment. Its superior performance in phase-sensitive detection circuits makes it invaluable in lock-in amplifiers and synchronous demodulators. The radiation-tolerant variant has been successfully deployed in space telescopes and particle physics experiments, demonstrating its exceptional reliability.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 40 V
- Drain to Source Voltage (Vdss): -
- Current - Drain (Idss) @ Vds (Vgs=0): 200 µA @ 10 V
- Current Drain (Id) - Max: -
- Voltage - Cutoff (VGS off) @ Id: 2 V @ 1 nA
- Input Capacitance (Ciss) (Max) @ Vds: 3pF @ 10V
- Resistance - RDS(On): -
- Power - Max: 300 mW
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92
