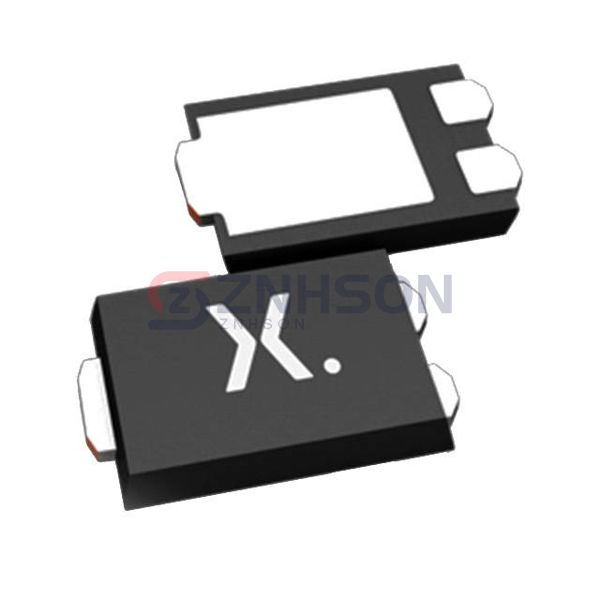

PNE200100CPE-QZ
Nexperia USA Inc.
Nexperia USA Inc.
HYPERFAST/ULTRAFAST RECOVERY REC
$1.25
Available to order
Reference Price (USD)
1+
$1.25000
500+
$1.2375
1000+
$1.225
1500+
$1.2125
2000+
$1.2
2500+
$1.1875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the PNE200100CPE-QZ diode rectifier array by Nexperia USA Inc., a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Nexperia USA Inc. delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 0.95 V @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 200 V
- Operating Temperature - Junction: 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: CFP15B
