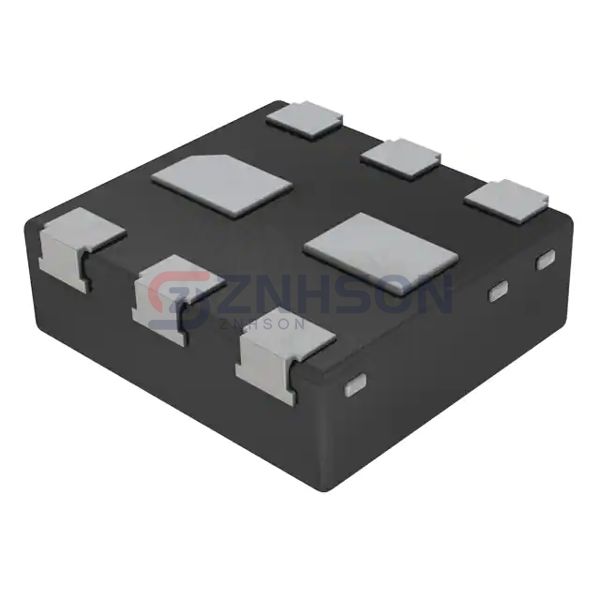

PQMD13Z
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS 1NPN 1PNP 50V 6DFN
$0.06
Available to order
Reference Price (USD)
5,000+
$0.06188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Nexperia USA Inc.'s PQMD13Z, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The PQMD13Z is widely used in lighting systems, portable electronics, and automotive accessories. Nexperia USA Inc.'s innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the PQMD13Z is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 1µA
- Frequency - Transition: 230MHz, 180MHz
- Power - Max: 350mW
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN Exposed Pad
- Supplier Device Package: DFN1010B-6
Related Products
Nexperia USA Inc.
PUMB1,135
Diodes Incorporated
ACX143ZUQ-7R
Rohm Semiconductor
EMB53T2R
Toshiba Semiconductor and Storage

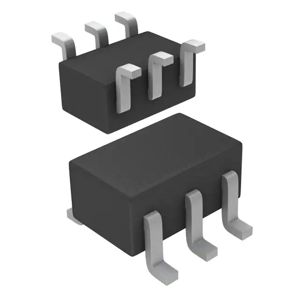

RN2909,LXHF(CT
Toshiba Semiconductor and Storage
RN4986FE,LF(CT
Infineon Technologies
BCR119SH6327XTSA1
Nexperia USA Inc.
NHUMD2F
Nexperia USA Inc.
PBLS4003Y,115
Diodes Incorporated

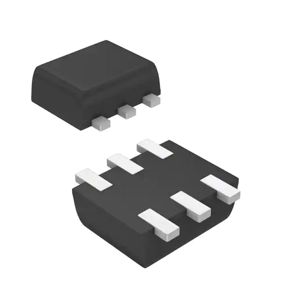

DCX143TH-7
