PREC009DBAN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 18POS 2.54MM
$0.60
Available to order
Reference Price (USD)
1+
$0.60000
10+
$0.56100
25+
$0.50520
50+
$0.44900
100+
$0.43040
250+
$0.39292
500+
$0.37422
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

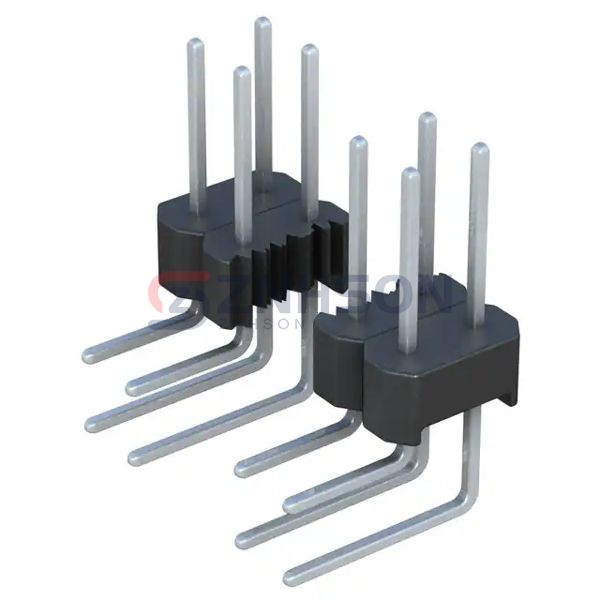

Upgrade your electronic designs with the PREC009DBAN-M71RC rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PREC009DBAN-M71RC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
