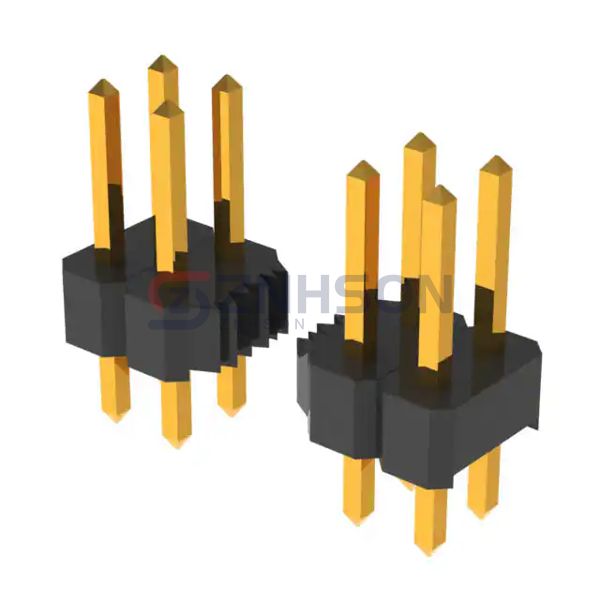

PRPC008DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 16POS 2.54MM
$0.46
Available to order
Reference Price (USD)
1+
$0.46000
10+
$0.43300
25+
$0.37160
50+
$0.31580
100+
$0.30340
250+
$0.27244
500+
$0.26006
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC008DAAN-RC by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PRPC008DAAN-RC supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-1744439-4
Samtec Inc.
ZSS-107-01-S-D-535
Sullins Connector Solutions
PRPC021DFAN-RC
Sullins Connector Solutions
PEC18DAEN
Oupiin
2215-2X10G00S/2.3/3.0B

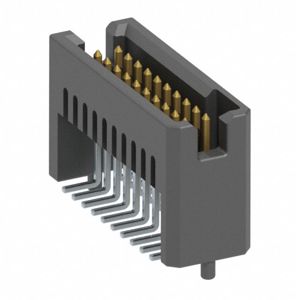

Samtec Inc.
TFM-110-22-L-D-A-K

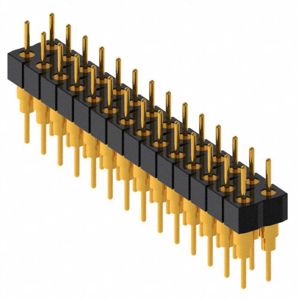

Samtec Inc.
BBD-114-G-A

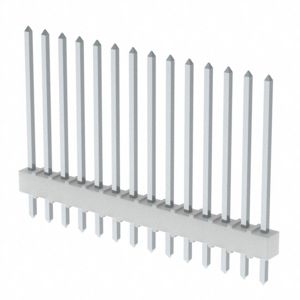

Molex
