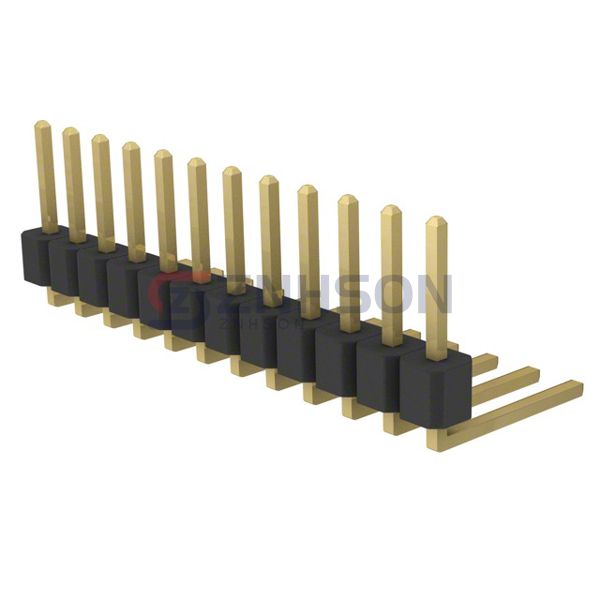

PRPC012SBCN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 12POS 2.54MM
$0.50
Available to order
Reference Price (USD)
1+
$0.50000
10+
$0.46800
25+
$0.42080
50+
$0.37420
100+
$0.35850
250+
$0.32736
500+
$0.31176
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PRPC012SBCN-M71RC rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PRPC012SBCN-M71RC adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.

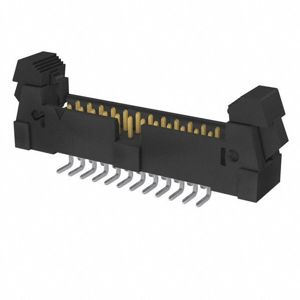

EHT-112-01-L-D-SM-SR
Preci-Dip

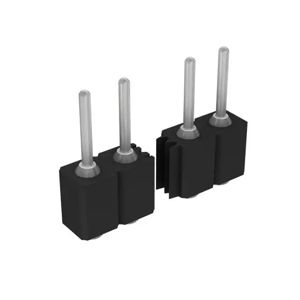

350-80-115-01-899101
Molex

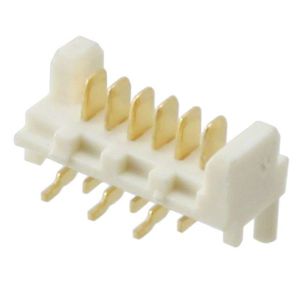

0908140806
Samtec Inc.
TMM-128-03-G-S
Samtec Inc.

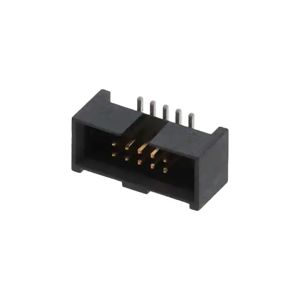

SHF-105-01-L-D-SM-K-TR
Sullins Connector Solutions

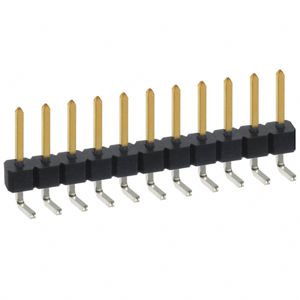

PBC11SBAN
Amphenol ICC (FCI)

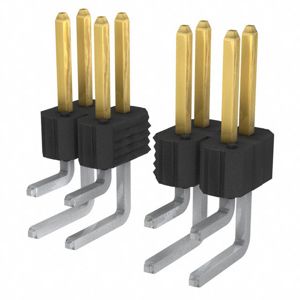

68695-224HLF
Sullins Connector Solutions

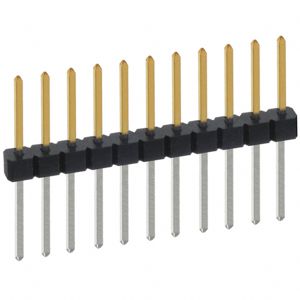

PBC11SFDN
