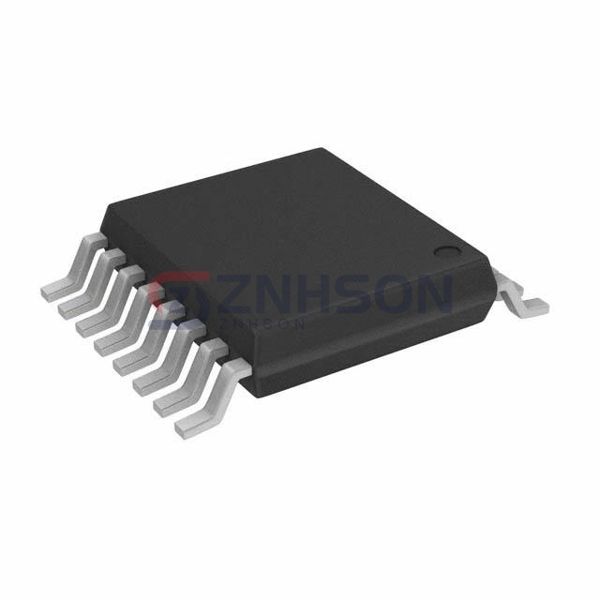

PS509LEX
Diodes Incorporated
Diodes Incorporated
ANALOG SWITCH 17V,TSSOP-16,T&R,2
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Diodes Incorporated's PS509LEX, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The PS509LEX meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V, ±5V ~ 18V
- Voltage - Supply, Dual (V±): 10V ~ 36V, ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 210ns, 191ns
- -3db Bandwidth: -
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 15pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
