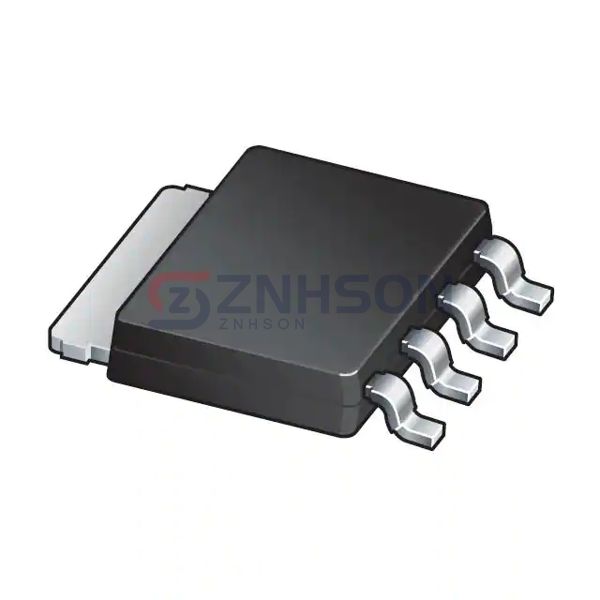

PSMN1R9-25YLC,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 25V 100A LFPAK56
$0.34
Available to order
Reference Price (USD)
1+
$0.34000
500+
$0.3366
1000+
$0.3332
1500+
$0.3298
2000+
$0.3264
2500+
$0.323
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PSMN1R9-25YLC,115 from NXP USA Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the PSMN1R9-25YLC,115 ensures reliable performance in demanding environments. Upgrade your circuit designs with NXP USA Inc.'s cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.05mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 1.95V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 57 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3504 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 141W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
