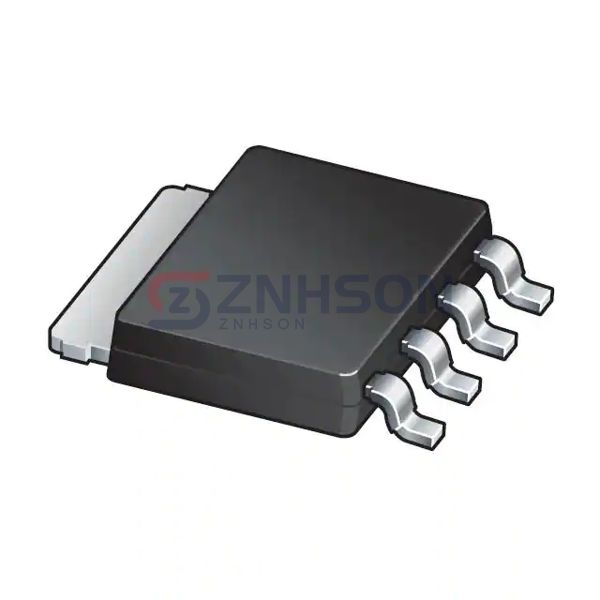

PSMN5R9-30YL,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 30V 78A LFPAK56
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
500+
$0.1881
1000+
$0.1862
1500+
$0.1843
2000+
$0.1824
2500+
$0.1805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the PSMN5R9-30YL,115 single MOSFET from NXP USA Inc.. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the PSMN5R9-30YL,115 combines cutting-edge technology with NXP USA Inc.'s renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 78A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.1mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.15V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 21.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1226 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 63W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
