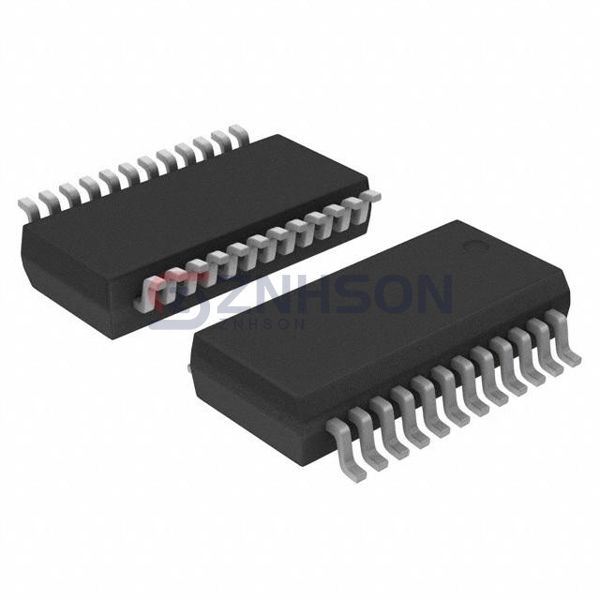

QS4A110QG8
Renesas Electronics America Inc
Renesas Electronics America Inc
IC SWITCH 24QSOP
$3.36
Available to order
Reference Price (USD)
3,000+
$2.11470
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Renesas Electronics America Inc's QS4A110QG8, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The QS4A110QG8 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: 5PST - NO
- Multiplexer/Demultiplexer Circuit: -
- Number of Circuits: 2
- On-State Resistance (Max): 17Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 6ns, 6.5ns
- -3db Bandwidth: 1.8GHz
- Charge Injection: 1.5pC
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -70dB @ 5.5MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package: 24-QSOP
