R114185000
Radiall USA, Inc.
Radiall USA, Inc.

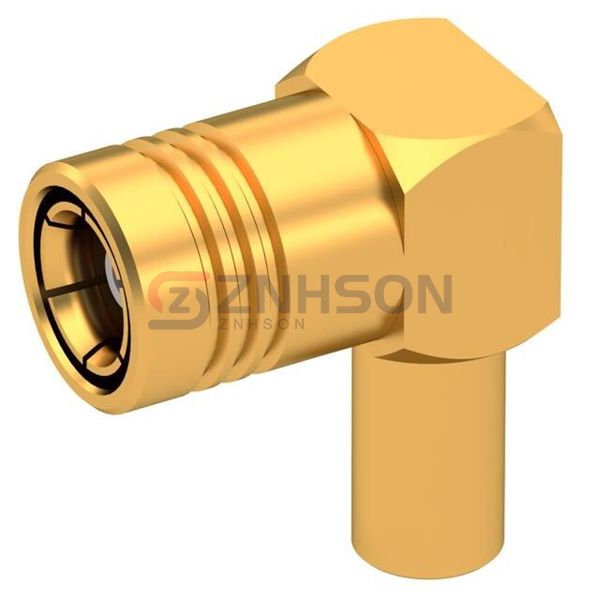

SMB / RIGHT ANGLE PLUG CRIMP TYP
$9.03
Available to order
Reference Price (USD)
1+
$9.02700
500+
$8.93673
1000+
$8.84646
1500+
$8.75619
2000+
$8.66592
2500+
$8.57565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R114185000 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R114185000 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Plug, Female Socket
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-174, 179, 187, 188, 316
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
