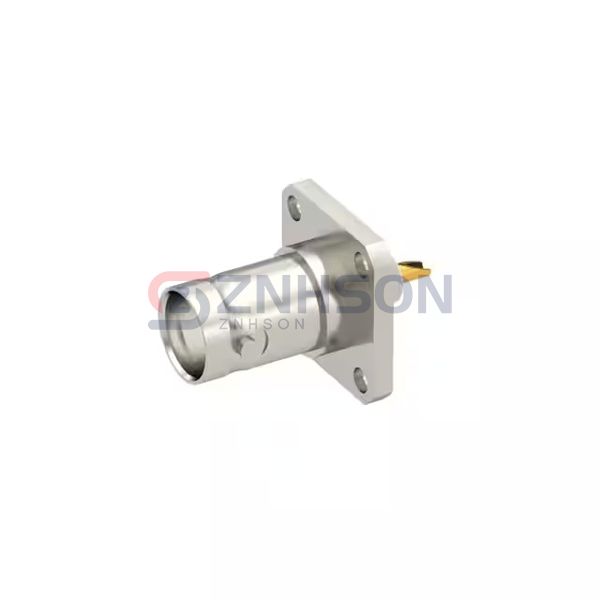

R141407000
Radiall USA, Inc.
Radiall USA, Inc.
BNC / SQUARE FLANGE JACK RECEPTA
$7.60
Available to order
Reference Price (USD)
1+
$7.60350
500+
$7.527465
1000+
$7.45143
1500+
$7.375395
2000+
$7.29936
2500+
$7.223325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R141407000 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R141407000 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder Cup
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Extended Insulation
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
