RGCL80TS60DGC11
Rohm Semiconductor
Rohm Semiconductor
IGBT
$5.24
Available to order
Reference Price (USD)
1+
$5.24000
500+
$5.1876
1000+
$5.1352
1500+
$5.0828
2000+
$5.0304
2500+
$4.978
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RGCL80TS60DGC11 by Rohm Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Rohm Semiconductor's reputation for quality, the RGCL80TS60DGC11 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 65 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 40A
- Power - Max: 148 W
- Switching Energy: 1.11mJ (on), 1.68mJ (off)
- Input Type: Standard
- Gate Charge: 98 nC
- Td (on/off) @ 25°C: 53ns/227ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 58 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole

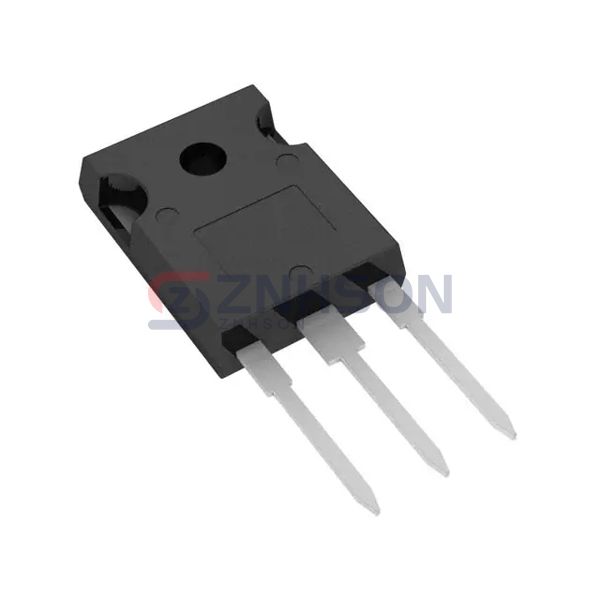

- Package / Case: TO-247-3
- Supplier Device Package: TO-247N
