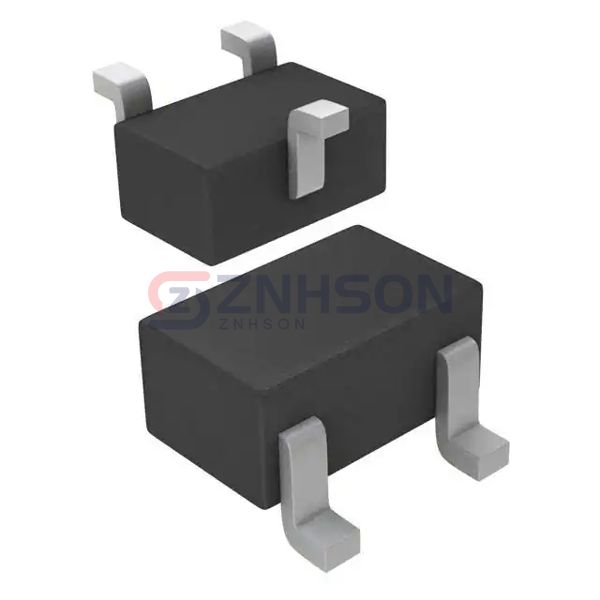

RN1306,LXHF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
AUTO AEC-Q SINGLE NPN , R1=4.7KO
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RN1306,LXHF from Toshiba Semiconductor and Storage is a high-performance Bipolar Junction Transistor (BJT) designed for precision applications. This pre-biased transistor simplifies circuit design by integrating resistors, reducing component count and board space. Ideal for switching and amplification, it offers excellent thermal stability and low saturation voltage. Common applications include LED drivers, relay switches, and audio amplifiers. Trust Toshiba Semiconductor and Storage's expertise in discrete semiconductors for reliable performance in industrial and consumer electronics.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70
Related Products
Nexperia USA Inc.
PDTC115EU,115
Panasonic Electronic Components
UNR32A300L
Fairchild Semiconductor
FJN3304RBU
Fairchild Semiconductor
FJY3002R
Toshiba Semiconductor and Storage
RN1104,LXHF(CT
onsemi
MMUN2131LT1G
Nexperia USA Inc.
PDTA124ET,215
onsemi
FJV3101RMTF
Panasonic Electronic Components

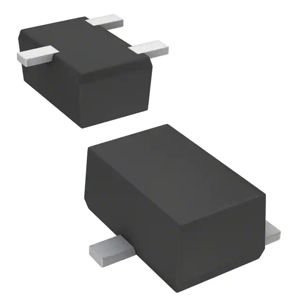

DRC5114W0L
