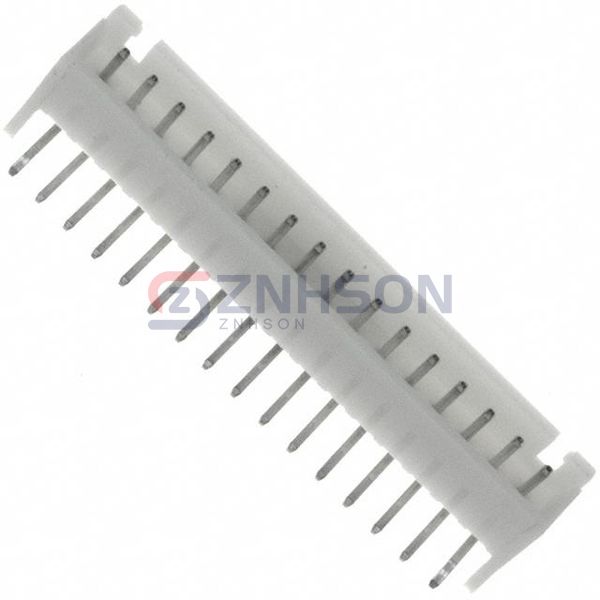

S16B-XH-A(LF)(SN)

JST Sales America Inc.

Manufacturer

JST Sales America Inc.

Description:

CONN HEADER R/A 16POS 2.5MM

Datasheet:

S16B-XH-A(LF)(SN) Datasheet

$0.95

Available to order

Reference Price (USD)

$0.93000

10+

$0.81900

100+

$0.70650

500+

$0.57802

1,000+

$0.51379

5,000+

$0.44957

10,000+

$0.42709

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the S16B-XH-A(LF)(SN) rectangular connector header from JST Sales America Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the S16B-XH-A(LF)(SN) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. JST Sales America Inc. guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.098" (2.50mm)
Number of Positions: 16
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Press-Fit, Solder
Fastening Type: Detent Lock
Contact Length - Mating: -
Contact Length - Post: 0.134" (3.40mm)
Overall Contact Length: -
Insulation Height: 0.240" (6.10mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polyamide (PA66), Nylon 6/6
Features: -
Operating Temperature: -25°C ~ 85°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Natural
Current Rating (Amps): 3A
Voltage Rating: 250V

Shopping cart

S16B-XH-A(LF)(SN)

Reference Price (USD)

Specifications

Related Products

5-146257-6

0878323221

GEC04SBSN-M89

PEC13SBBN

802-80-022-20-001101

826950-2

0537800670

HTSW-135-07-T-D-LL

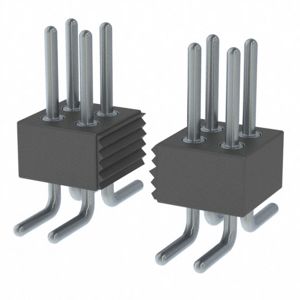

852-40-060-30-001000

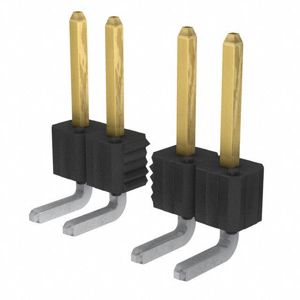

68015-236
