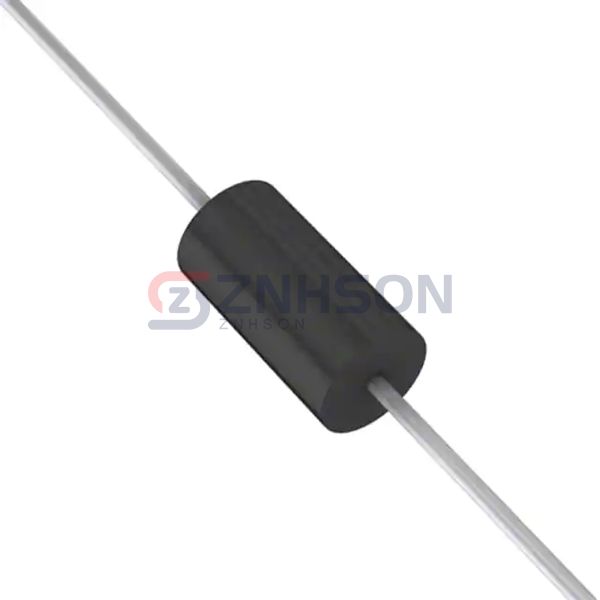

SB560L_R2_00001
Panjit International Inc.
Panjit International Inc.
LOW VF SCHOTTKY BARRIER RECTIFIE
$0.66
Available to order
Reference Price (USD)
1+
$0.66000
500+
$0.6534
1000+
$0.6468
1500+
$0.6402
2000+
$0.6336
2500+
$0.627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SB560L_R2_00001 from Panjit International Inc. is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panjit International Inc.'s SB560L_R2_00001 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 490 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
