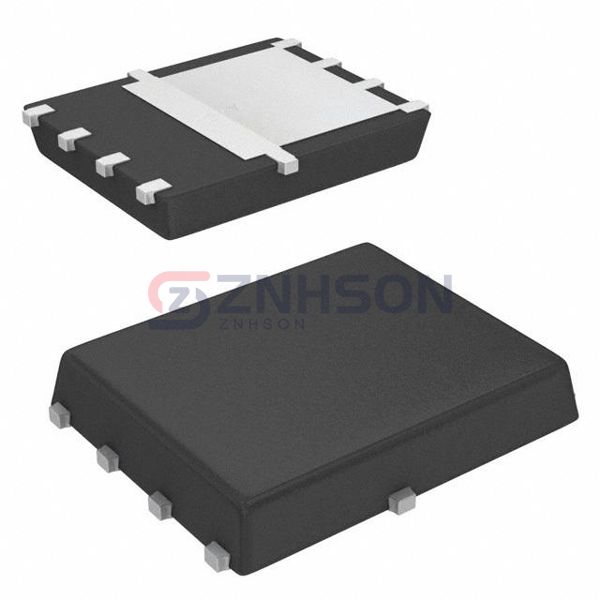

SIR120DP-T1-RE3
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 80V 24.7A/106A PPAK
$1.79
Available to order
Reference Price (USD)
1+
$1.79000
500+
$1.7721
1000+
$1.7542
1500+
$1.7363
2000+
$1.7184
2500+
$1.7005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the SIR120DP-T1-RE3 by Vishay Siliconix, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The SIR120DP-T1-RE3 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Vishay Siliconix.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 24.7A (Ta), 106A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.55mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 94 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4150 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 5.4W (Ta), 100W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerPAK® SO-8
- Package / Case: PowerPAK® SO-8
