SMTJ86CAT
Eaton - Electronics Division
Eaton - Electronics Division

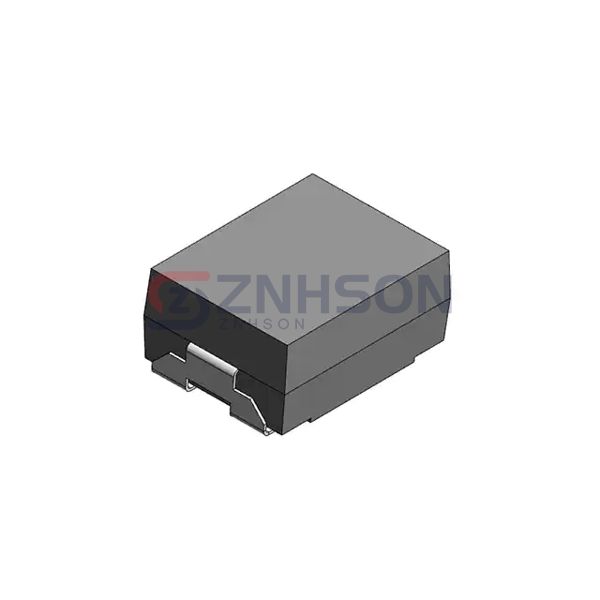

TVS DIODE 86VWM 170VC 4SMT
$13.44
Available to order
Reference Price (USD)
1+
$13.44000
500+
$13.3056
1000+
$13.1712
1500+
$13.0368
2000+
$12.9024
2500+
$12.768
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMTJ86CAT TVS diode by Eaton - Electronics Division offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the SMTJ86CAT can safeguard solar inverters from overvoltage events. Choose Eaton - Electronics Division for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 86V
- Voltage - Breakdown (Min): 95V
- Voltage - Clamping (Max) @ Ipp: 170V
- Current - Peak Pulse (10/1000µs): 3.5kA (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: Ethernet, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, J-Lead
- Supplier Device Package: 4-SMT
