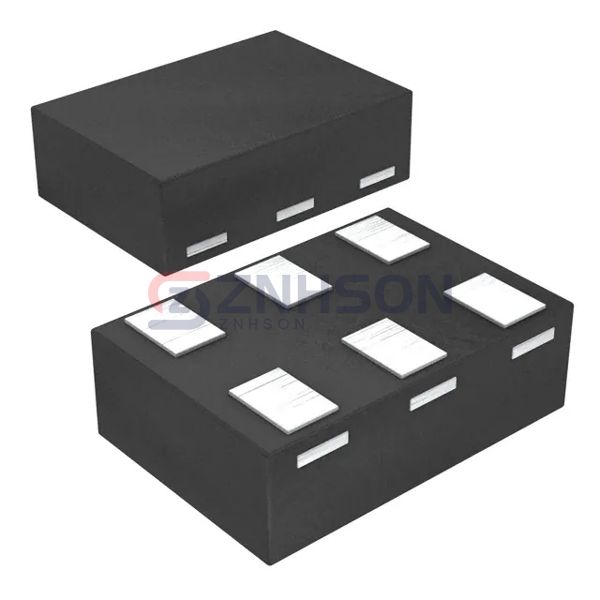

SN74AXCH1T45DRYR
Texas Instruments
Texas Instruments
SINGLE-BIT DUAL-SUPPLY BUS TRANS
$0.76
Available to order
Reference Price (USD)
1+
$0.76000
500+
$0.7524
1000+
$0.7448
1500+
$0.7372
2000+
$0.7296
2500+
$0.722
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74AXCH1T45DRYR stands out in the Logic - Translators, Level Shifters segment with its unique combination of speed and power efficiency. This bi-directional voltage translator supports data rates up to 100Mbps while consuming minimal power, thanks to its advanced CMOS technology. The auto-direction sensing eliminates the need for additional control signals, reducing design complexity. Practical applications range from gaming consoles (interface between high-speed memory and low-voltage processors) to industrial HMIs (connecting touch panels with various voltage requirements) and satellite communications equipment.
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 1
- Voltage - VCCA: 0.65 V ~ 3.6 V
- Voltage - VCCB: 0.65 V ~ 3.6 V
- Input Signal: -
- Output Signal: -
- Output Type: Tri-State, Non-Inverted
- Data Rate: 500Mbps
- Operating Temperature: -40°C ~ 125°C (TA)
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN
- Supplier Device Package: 6-SON (1.45x1)
