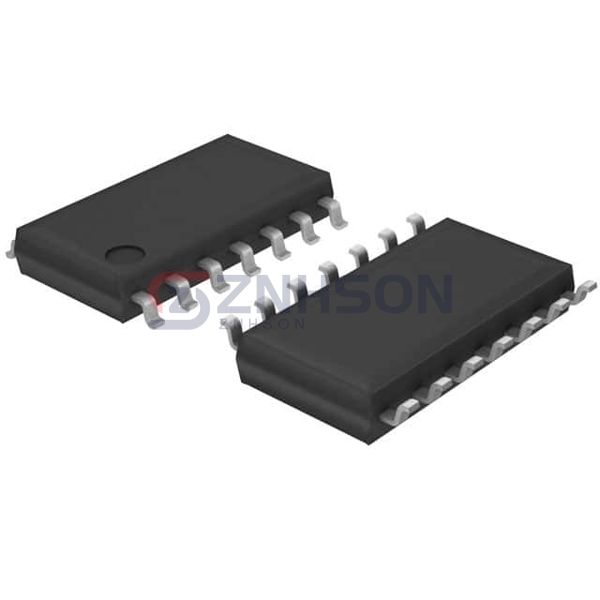

SN74LS136NSR
Texas Instruments
Texas Instruments
IC GATE XOR OP COL 4CH 2IN 14SOP
$0.43
Available to order
Reference Price (USD)
2,000+
$0.36400
6,000+
$0.34580
10,000+
$0.33280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital systems with Texas Instruments's SN74LS136NSR, a sophisticated Logic - Gates and Inverters solution. This IC features proprietary noise reduction technology that maintains signal integrity in electrically noisy environments. The device's symmetrical output impedance minimizes transmission line reflections in high-speed applications. Typical implementations include interface logic for ADCs/DACs, clock distribution networks, and system control logic. The SN74LS136NSR is particularly effective in automotive CAN bus systems, industrial Ethernet switches, and aerospace avionics. With its extended product lifecycle guarantee, this component provides long-term supply security for critical applications.
Specifications
- Product Status: Active
- Logic Type: XOR (Exclusive OR)
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 10 mA
- Current - Output High, Low: -, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 30ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SO
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
