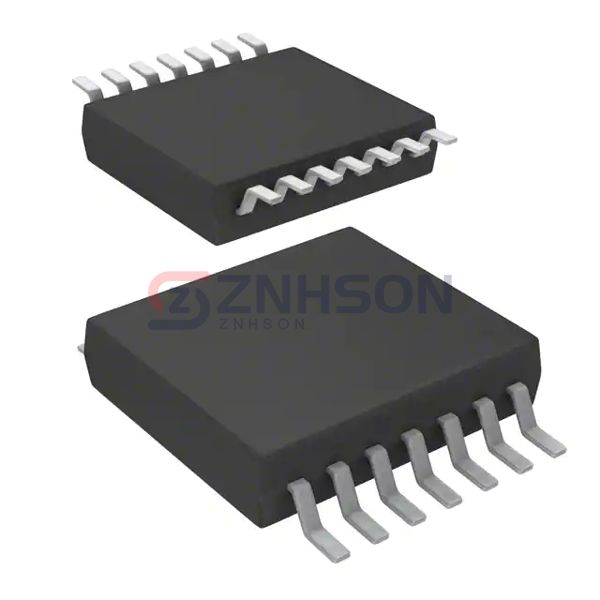

SN74LV20ADGVR
Texas Instruments
Texas Instruments
IC GATE NAND 2CH 4-INP 14TVSOP
$0.34
Available to order
Reference Price (USD)
2,000+
$0.30015
6,000+
$0.27945
10,000+
$0.26910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the precision engineering of Texas Instruments's SN74LV20ADGVR, a standout in our Logic - Gates and Inverters inventory. This integrated circuit offers multiple logic functions in a single package, reducing board space and simplifying circuit design. Key features include Schmitt-trigger inputs for improved signal integrity, balanced propagation delays, and compatibility with TTL logic levels. The SN74LV20ADGVR finds applications in digital signal processing, computer peripherals, and communication systems. From industrial PLCs to consumer electronics like gaming consoles and smart TVs, this logic IC delivers consistent performance. Its RoHS compliance and lead-free construction meet global environmental standards.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 4
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 20 µA
- Current - Output High, Low: 12mA, 12mA
- Logic Level - Low: 0.5V
- Logic Level - High: 1.5V
- Max Propagation Delay @ V, Max CL: 7ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TVSOP
- Package / Case: 14-TFSOP (0.173", 4.40mm Width)
