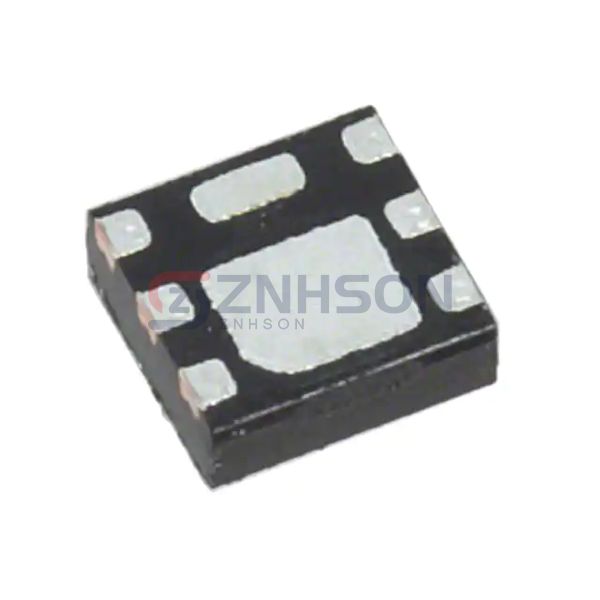

SSM6J503NU,LF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET P-CH 20V 6A 6UDFNB
$0.14
Available to order
Reference Price (USD)
3,000+
$0.12540
6,000+
$0.11780
15,000+
$0.11020
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the SSM6J503NU,LF single MOSFET from Toshiba Semiconductor and Storage. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the SSM6J503NU,LF combines cutting-edge technology with Toshiba Semiconductor and Storage's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 32.4mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 12.8 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 840 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-UDFNB (2x2)
- Package / Case: 6-WDFN Exposed Pad
