STB120N4F6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 80A D2PAK
$2.59
Available to order
Reference Price (USD)
1,000+
$1.81650
2,000+
$1.73565
5,000+
$1.67790
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STB120N4F6 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STB120N4F6 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 65 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3850 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK (TO-263)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Vishay Siliconix

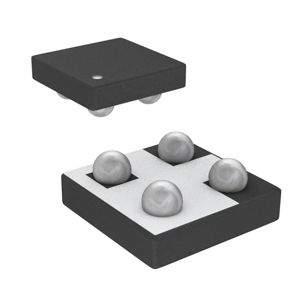

SI8447DB-T2-E1
IXYS
IXTQ130N10T
onsemi
2N7002KW
Infineon Technologies
IPU60R2K1CEBKMA1
Infineon Technologies
IPP076N15N5AKSA1
Diotec Semiconductor
DI050N04PT
onsemi
NVD5C688NLT4G
Rectron USA
RM20N150LD
Infineon Technologies

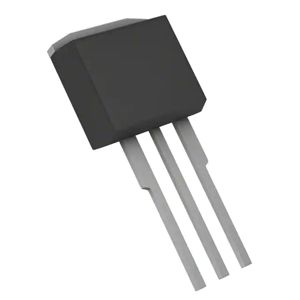

IRFSL7730PBF
