STB25N80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 19.5A D2PAK
$6.62
Available to order
Reference Price (USD)
1,000+
$6.38175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STB25N80K5 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STB25N80K5 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 19.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 260mOhm @ 19.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1600 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 250W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK (TO-263)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
onsemi
FQU13N06LTU-WS
STMicroelectronics
STH3N150-2
Nexperia USA Inc.
PMN40ENEX
Vishay Siliconix
SIRA12BDP-T1-GE3
Infineon Technologies
AUIRFS4010-7P
Microchip Technology
APT43M60B2
STMicroelectronics

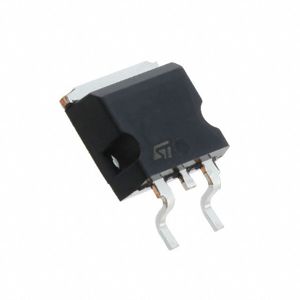

STB46NF30
onsemi

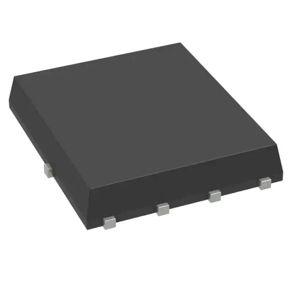

FDMS0312AS
