STGW20H60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 40A 167W TO247
$3.15
Available to order
Reference Price (USD)
1+
$3.30000
30+
$2.83333
120+
$2.48367
510+
$2.14563
1,020+
$1.84260
2,520+
$1.76490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGW20H60DF by STMicroelectronics is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the STGW20H60DF delivers robust performance. STMicroelectronics's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate STGW20H60DF into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 20A
- Power - Max: 167 W
- Switching Energy: 209µJ (on), 261µJ (off)
- Input Type: Standard
- Gate Charge: 115 nC
- Td (on/off) @ 25°C: 42.5ns/177ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 90 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
Related Products
NTE Electronics, Inc
NTE3322
onsemi
FGL60N100BNTD
onsemi
FGH80N60FD2TU
Infineon Technologies
IRGSL4640DPBF
Infineon Technologies
IKD10N60RATMA1
onsemi
FGB20N60SFD-F085
IXYS
IXYH60N90C3
Infineon Technologies

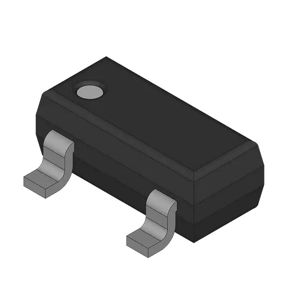

IRG7PH46UEP
