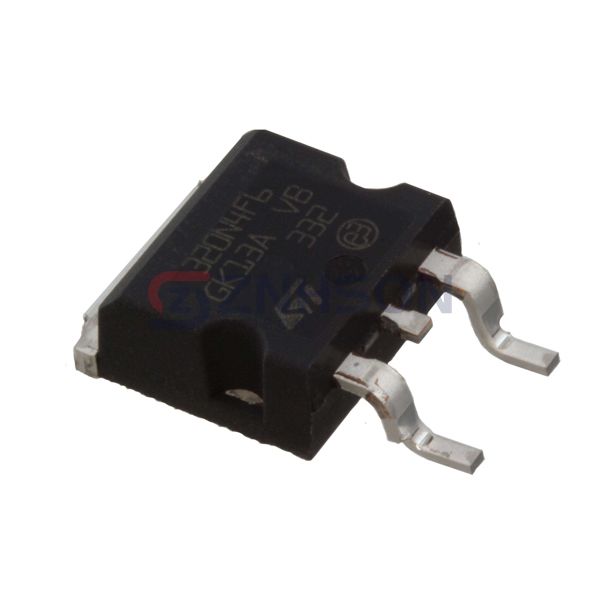

STH320N4F6-2
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 200A H2PAK
$5.25
Available to order
Reference Price (USD)
1+
$5.25000
500+
$5.1975
1000+
$5.145
1500+
$5.0925
2000+
$5.04
2500+
$4.9875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STH320N4F6-2 by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STH320N4F6-2 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 80A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 240 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13800 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H²PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab) Variant
Related Products
Vishay Siliconix
SQJQ186E-T1_GE3
Rohm Semiconductor

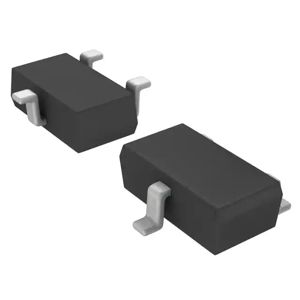

RTR025N05HZGTL
Fairchild Semiconductor
FDB6690S
onsemi

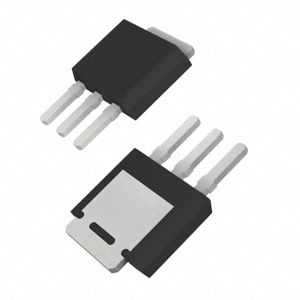

NTD3808N-1G
Vishay Siliconix

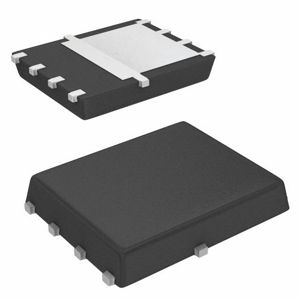

SIRA10DP-T1-GE3
Infineon Technologies

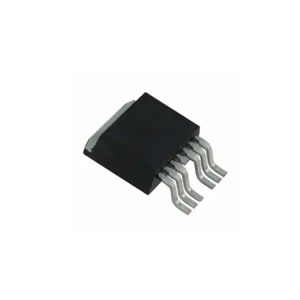

AUIRF7647S2TR
onsemi

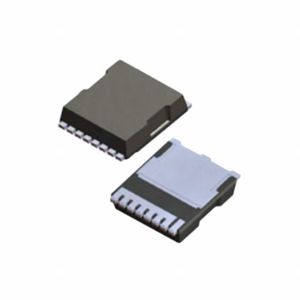

FDBL86363-F085
Infineon Technologies

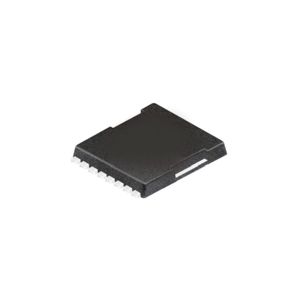

IPT60R022S7XTMA1
Infineon Technologies

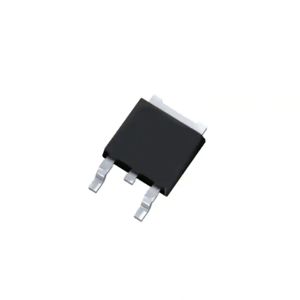

IPD30N12S3L31ATMA1
