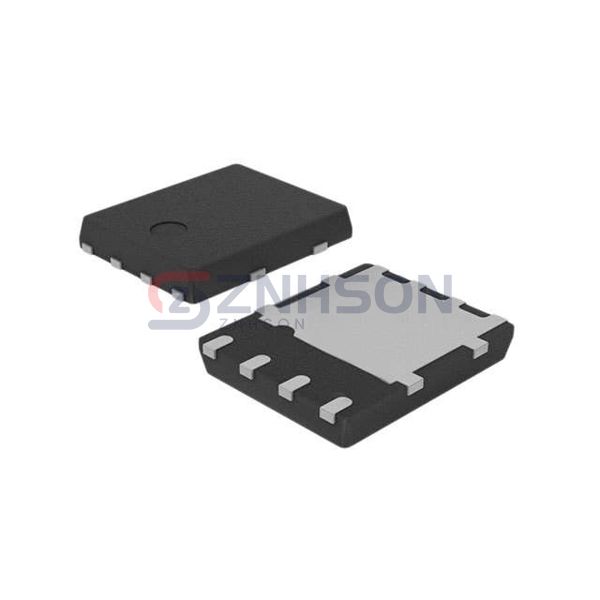

STL110NS3LLH7
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 120A POWERFLAT
$1.29
Available to order
Reference Price (USD)
1+
$1.29000
500+
$1.2771
1000+
$1.2642
1500+
$1.2513
2000+
$1.2384
2500+
$1.2255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STL110NS3LLH7 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STL110NS3LLH7 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.4mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 13.7 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2110 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 4W (Ta), 75W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
