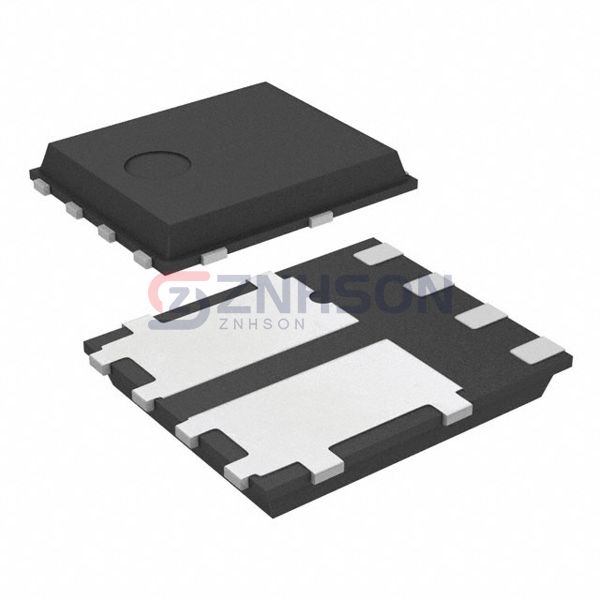

STL7LN80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 5A POWERFLAT
$2.60
Available to order
Reference Price (USD)
3,000+
$1.07200
6,000+
$1.03680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STL7LN80K5 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STL7LN80K5 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.15Ohm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 270 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 42W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
