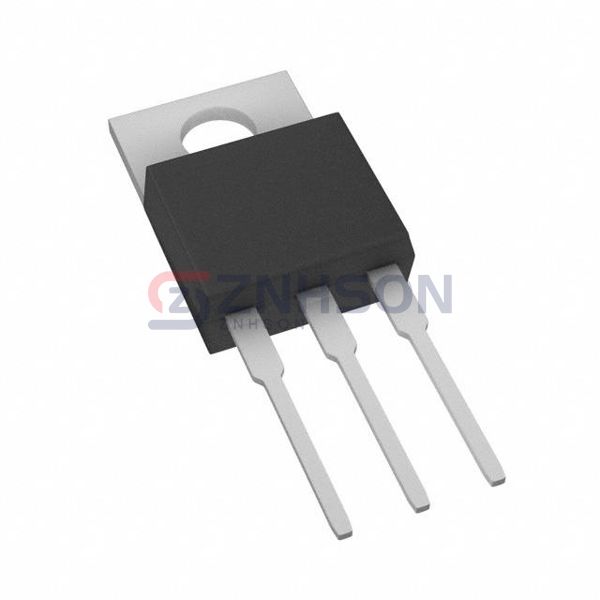

IRF9540PBF-BE3
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 100V 19A TO220AB
$2.25
Available to order
Reference Price (USD)
1+
$2.25000
500+
$2.2275
1000+
$2.205
1500+
$2.1825
2000+
$2.16
2500+
$2.1375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRF9540PBF-BE3 single MOSFET from Vishay Siliconix is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IRF9540PBF-BE3 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 19A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 200mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 61 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1400 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
Nexperia USA Inc.
PMPB10ENZ
onsemi
FDMA905P
IXYS
IXFK64N50Q3
NXP USA Inc.
BUK624R5-30C,118
Vishay Siliconix

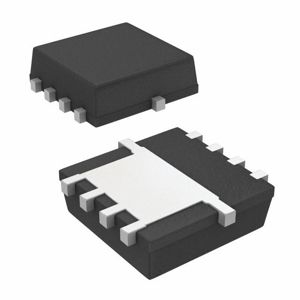

SIS410DN-T1-GE3
Vishay Siliconix

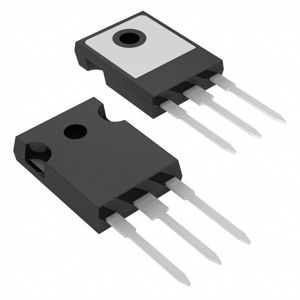

SIHG47N60EF-GE3
Infineon Technologies
IPD70R600P7SAUMA1
Infineon Technologies
AUIRF4905
Infineon Technologies
IPA60R199CPXKSA1

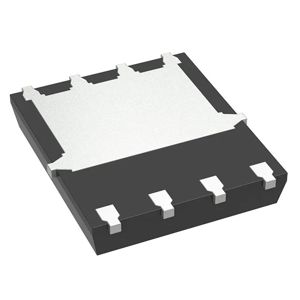

Panjit International Inc.
